The main switch, operating mechanism and components of XGN are made of ABB's original parts or SFL-12/24 switchgear produced by domestic assembly of imported parts, and ABB's original HAD/US SF6 can also be installed according to user needs. Circuit breaker or VD4-S type vacuum circuit breaker. The operation mode is divided into manual and electric two kinds.
The switchgear is welded by the CNC machine tool after processing, the protection level reaches IP3X, and the reliable mechanical interlocking and anti-misoperation function. This product has the characteristics of small size, heavy weight, beautiful appearance, easy operation, long life, high parameters, no pollution, less maintenance and so on.

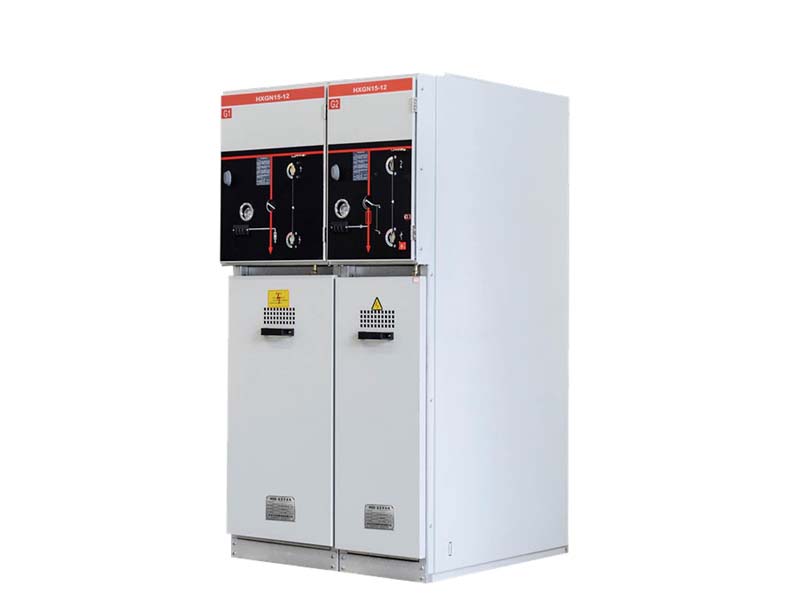

XNG口-12/24 (SF6) type unit-type AC metal closed loop switchgear, suitable for 50HZ, 12KV power network, as the acceptance and distribution of electric energy. Suitable for loading pre-installed substations and distribution stations. It has the characteristics of complete enclosure, maintenance-free, compact structure and high reliability.

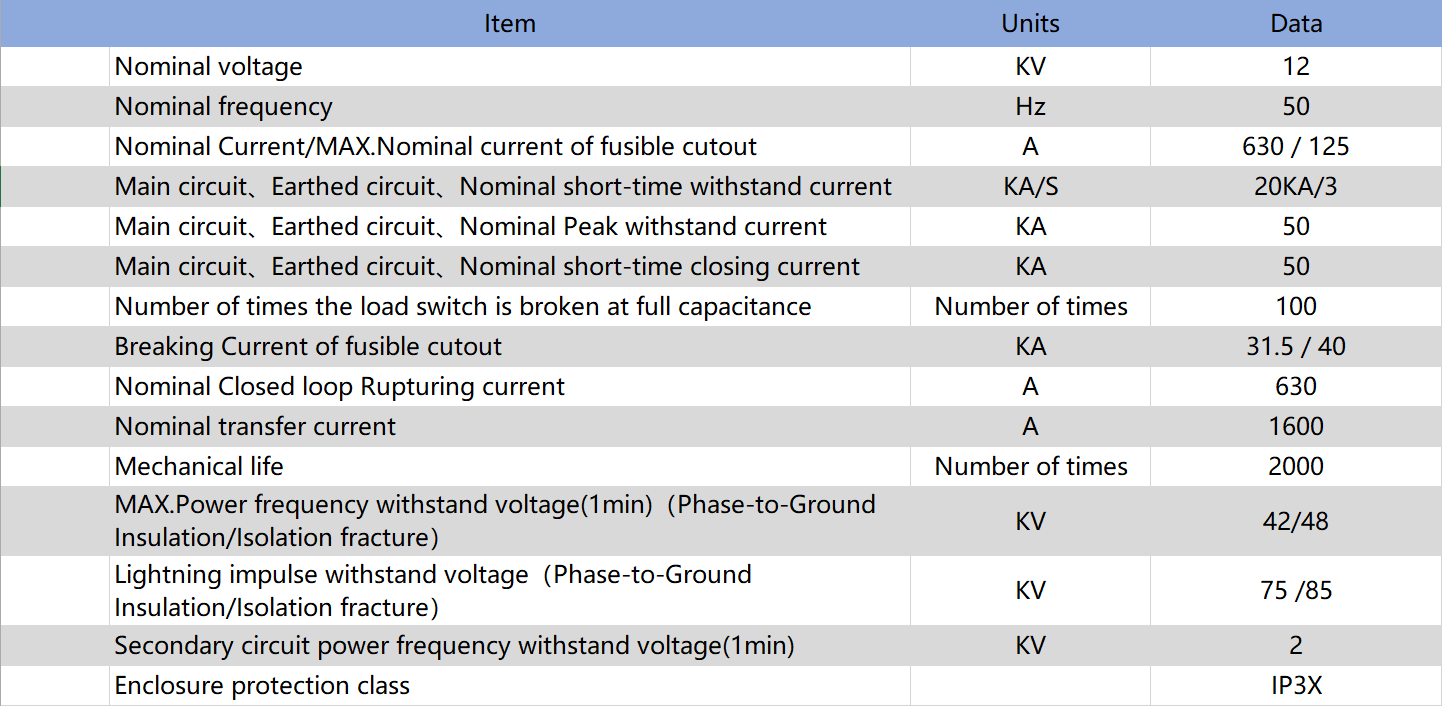

Technical parameter：
