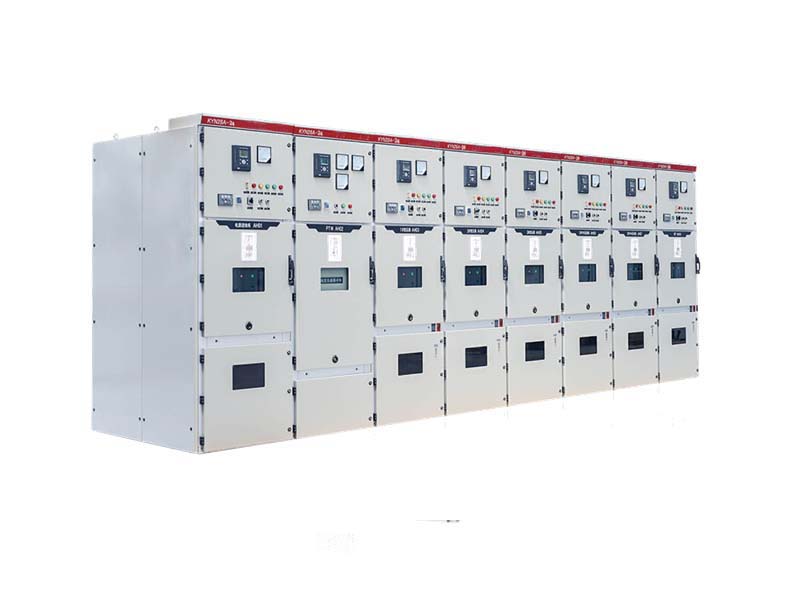

Kyn口-24 type armplate movable AC metal closed switchgear (hereinafter referred to as switchgear), suitable for indoor three-phase 50/60HZ, rated voltage 24KV power system, mainly used in power plants, substations, industrial and mining enterprises and high-rise buildings, as the acceptance and distribution of electric energy and the circuit control, protection and monitoring.
Kyn口-24 switchgear has various functions to prevent misoperation, including preventing moving handcar with load, preventing grounding switch from closing the circuit breaker, preventing live grounding switch and preventing straying into the live compartment.
KYN口-24 is equipped with high performance VS1,VN2 series mid-mounted high voltage AC vacuum circuit breaker and solid sealed vacuum switch. The secondary circuit of the switchgear is equipped with advanced and reliable control and protection unit; Bus bar adopts heat shrink insulation material or epoxy coating insulation means, optimize electrode shape, compact cabinet structure, the switchgear is advanced technology, stable performance, reasonable structure, easy to use, safe and reliable power distribution equipment.

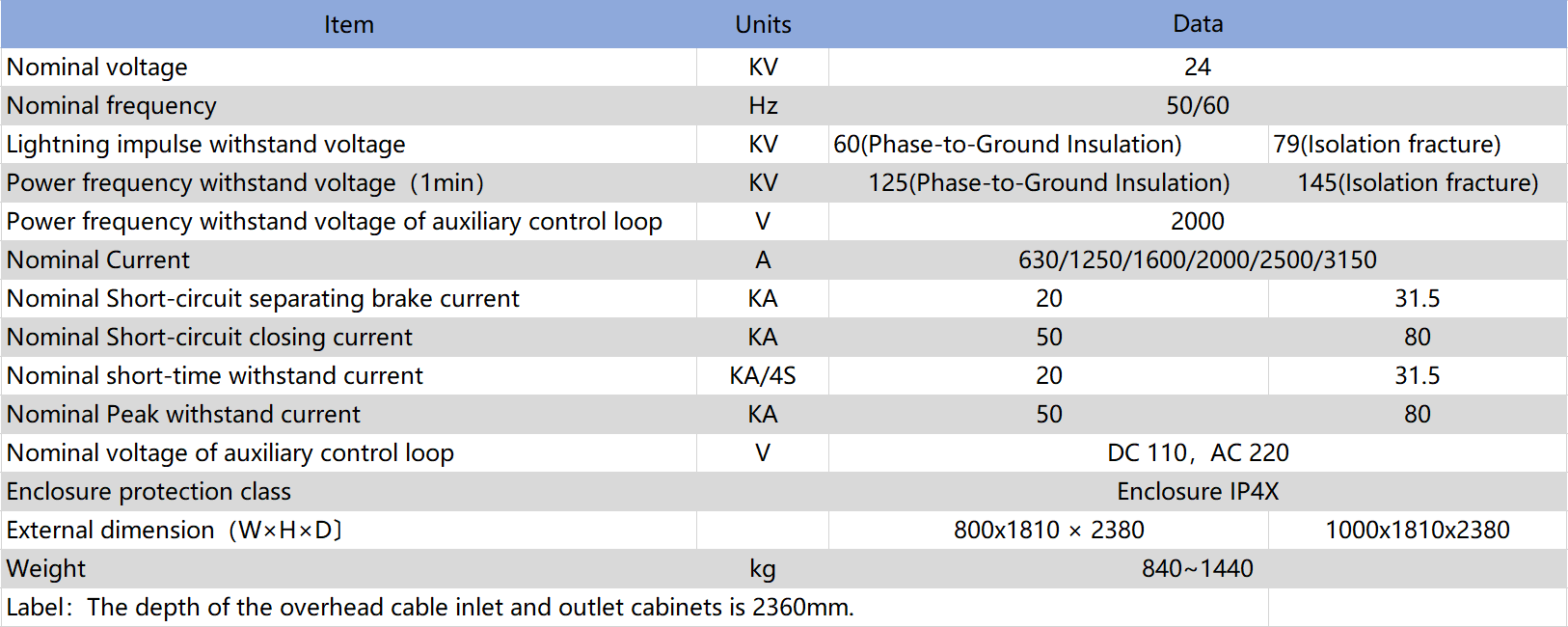

Technical parameter：
