As a power plant, substation and industrial and mining enterprises to accept and distribute electric energy, the circuit to control, protection and detection and other functions, can also be used for frequent operation places.
Product Information:

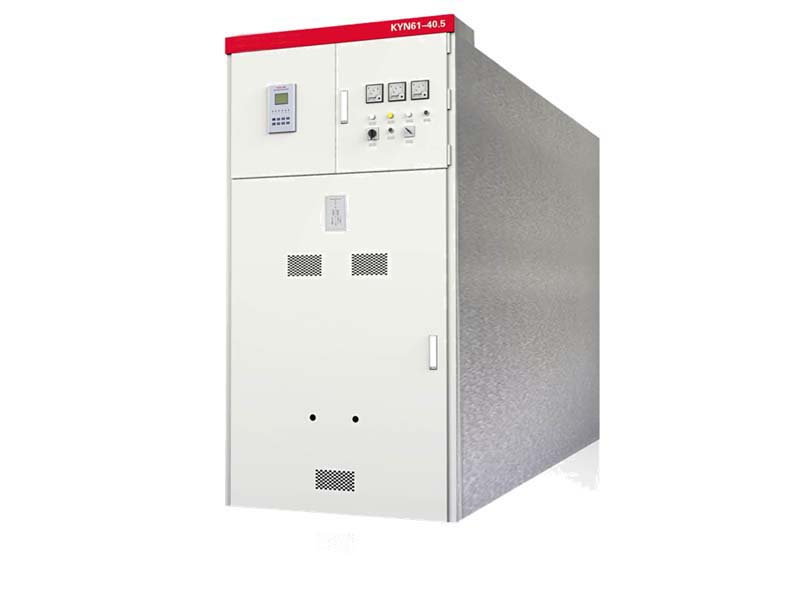

Product name: Armouring removable AC metal closed switchgear
Product model: KYN61-40.5
Operating voltage: 40.5KV
Rated frequency: 50HZ
Protection level: IP3X
Use environment:
Altitude: No more than 1000 meters
Ambient temperature: upper limit 40+℃, lower limit -10℃
Relative humidity: the daily average is not more than 95% (20℃)
Earthquake crack wave: intensity does not exceed 8 degrees
Water vapor pressure: the daily average does not exceed 2.2KPa
Environmental conditions: no fire, explosion danger, serious pollution, chemical corrosion and violent vibration.

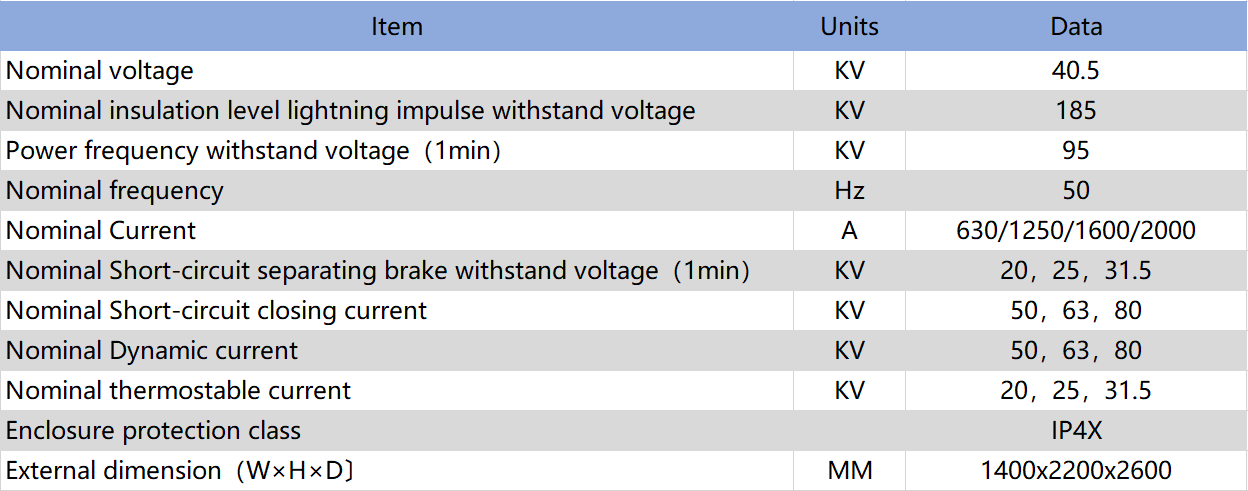

Technical parameter：
