Technical data
| Battery cabinet data | ST215kWh-100kvA-2h | ST225kWh-110kvA-2h |
| cell type | LFP | |
| System battery configuration | 240 S1P | 256 S1P |
| BOL(Battery capacity (BOL) at DC side ) | 215 kWh | 229 kWh |
| Battery voltage range | 648 V - 876 V | 691.2 V - 934.4 V |
PCS data
| ST215kWh-100kVA-2h | ST225kWh-110kVA-2h | |
| Nominal AC power | 100 kW | 110 kW |
| Max.THD of curretnt | < 3 % at nominal power | |
| DC component | < 0.5 % at nominal power | |
| Nominal grid voltage | 380 V | |
| Nominal grid voltage range | 323 V - 418 V | |
| Nominal grid frequency | 50 Hz | |
| Nominal grid frequency range | 45 Hz - 55 Hz | |

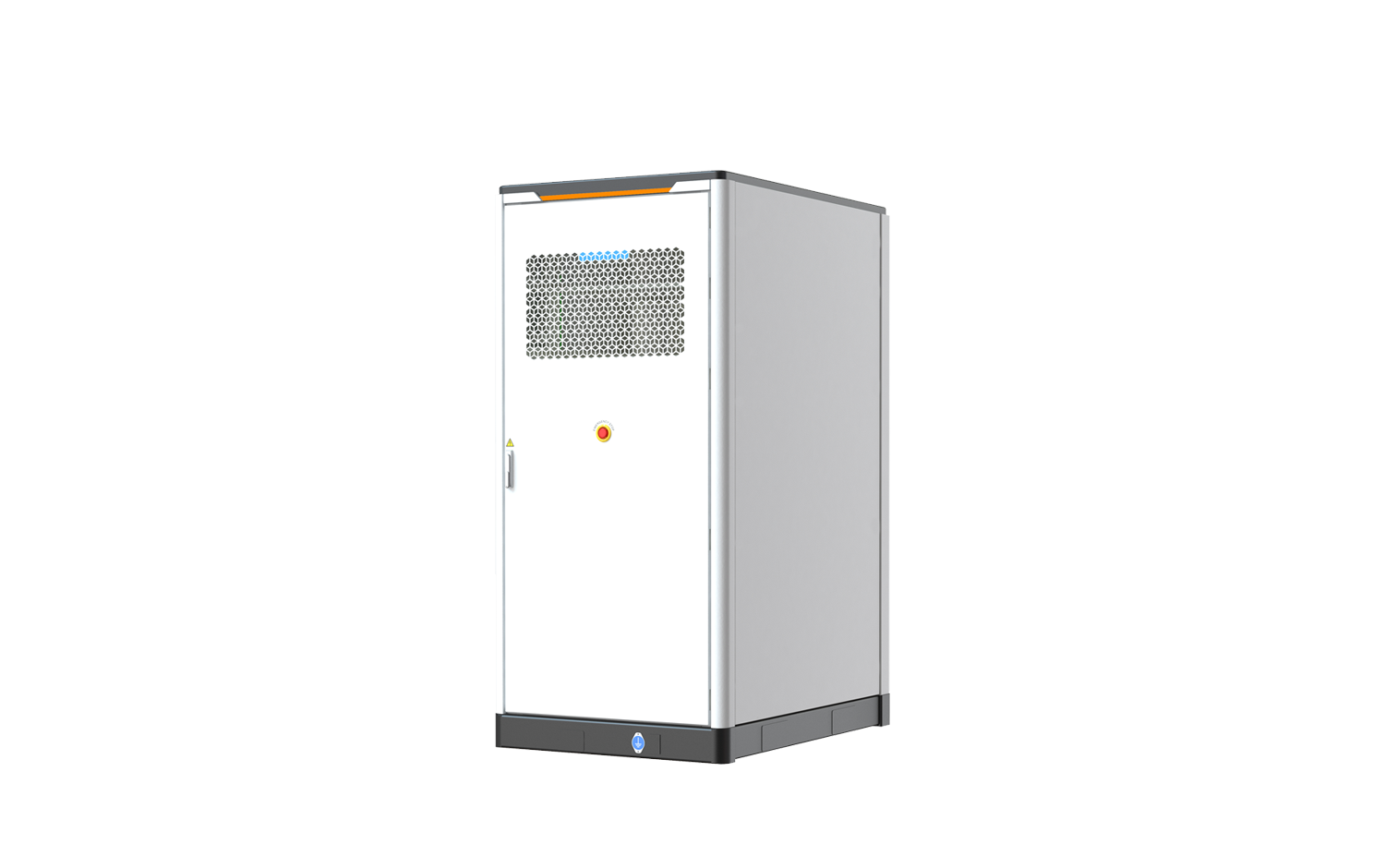

System data
· ST215kWh-100kW-2h / ST225kWh-110kW-2h
· Dimensions of battery cabinet (W * H * D)* :1150 mm * 2450 mm * 1610 mm
· Weight of battery unit :≤ 2.9 T
· Max Cycle efficiency:≥ 90 %
· Degree of protection :IP55
· auxiliary supply power:Autonomous supply power / External supply power
· Anti-corrsion grade :C3 / C5
· Relative humidity range:0 % - 100 % non-condensing
· Operating temperature range：-30 ℃ - 50 ℃ ( > 45 ℃ derating )
· Max. working altitude :3000 m
· Cooling concept of battery chamber :Liquid cooling
· Fire safety equipment :Smoke detector，phonoreception Alarm apparatus，gas fire/water fire
· Communication interfaces :Ethernet
· Communication protocols :Modbus TCP
